FOOD ASSEMBLY ROBOTICS

FURTHER AUTOMATE PREPARED FOOD ASSEMBLY WITH ROBOTS

Grote’s robotic solutions automate food and ingredient handling, alignment and positioning, and more to make a wide range of prepared foods we have decades of experience in.

Increase production with less manual labor with these flexible, hygienic high-care robots.

HIGH CARE FOOD PROCESSING ROBOTICS

Further automate food assembly lines for prepared food products like frozen pizza, snack foods, frozen and ready meals, food to-go, and ready-to-eat foods.

Increased Accuracy & Production

Robots perform with high accuracy and consistency – ideal for high-volume, repetitive tasks. Application rates up to 100/minute/robot.

LABOR SAVINGS

Eliminate labor and handling where they’ve always been needed throughout your processing line. Save several operators per shift.

SANITARY DESIGN

Robots, 3D vision systems, and end-of-arm tooling are designed to the same hygienic standards as food processing equipment – enabling quick and thorough washdowns.

CUSTOMER SUPPORT

We design and configure robotic solutions precisely for your application. And we’re here to support you once it’s in operation.

ROBOTIC APPLICATION LIBRARY

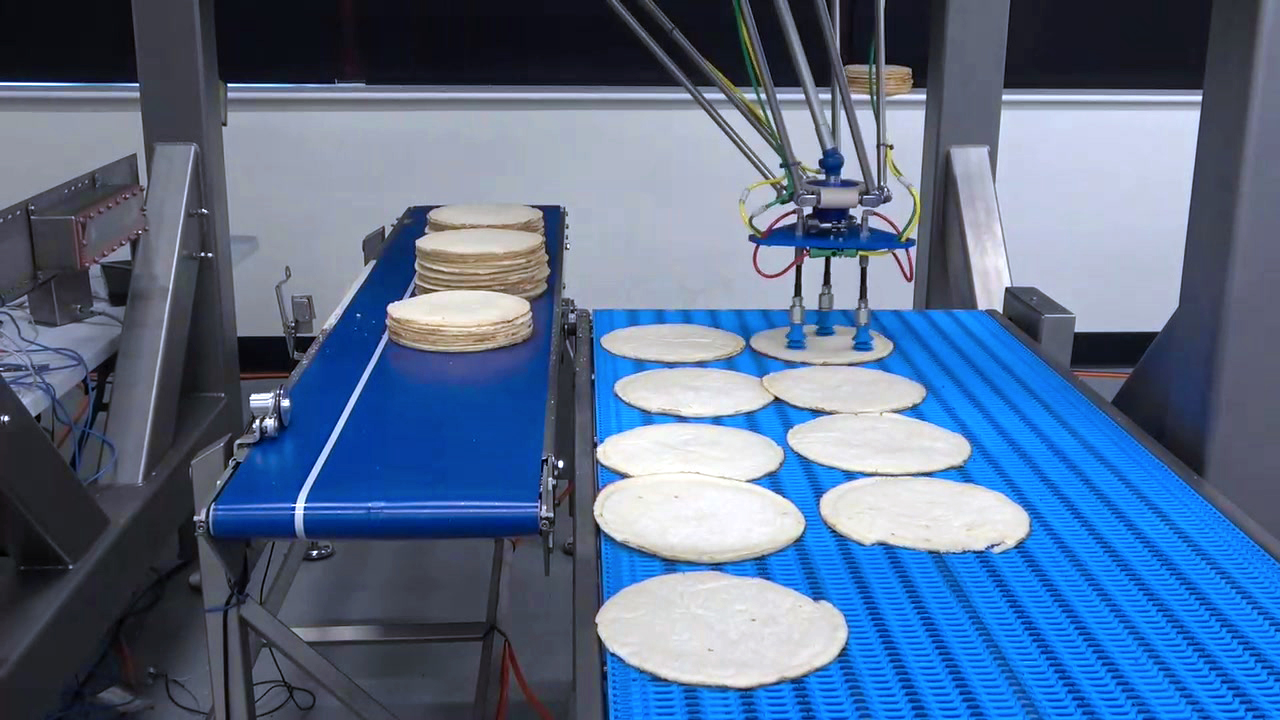

Pizza Crust Denesting

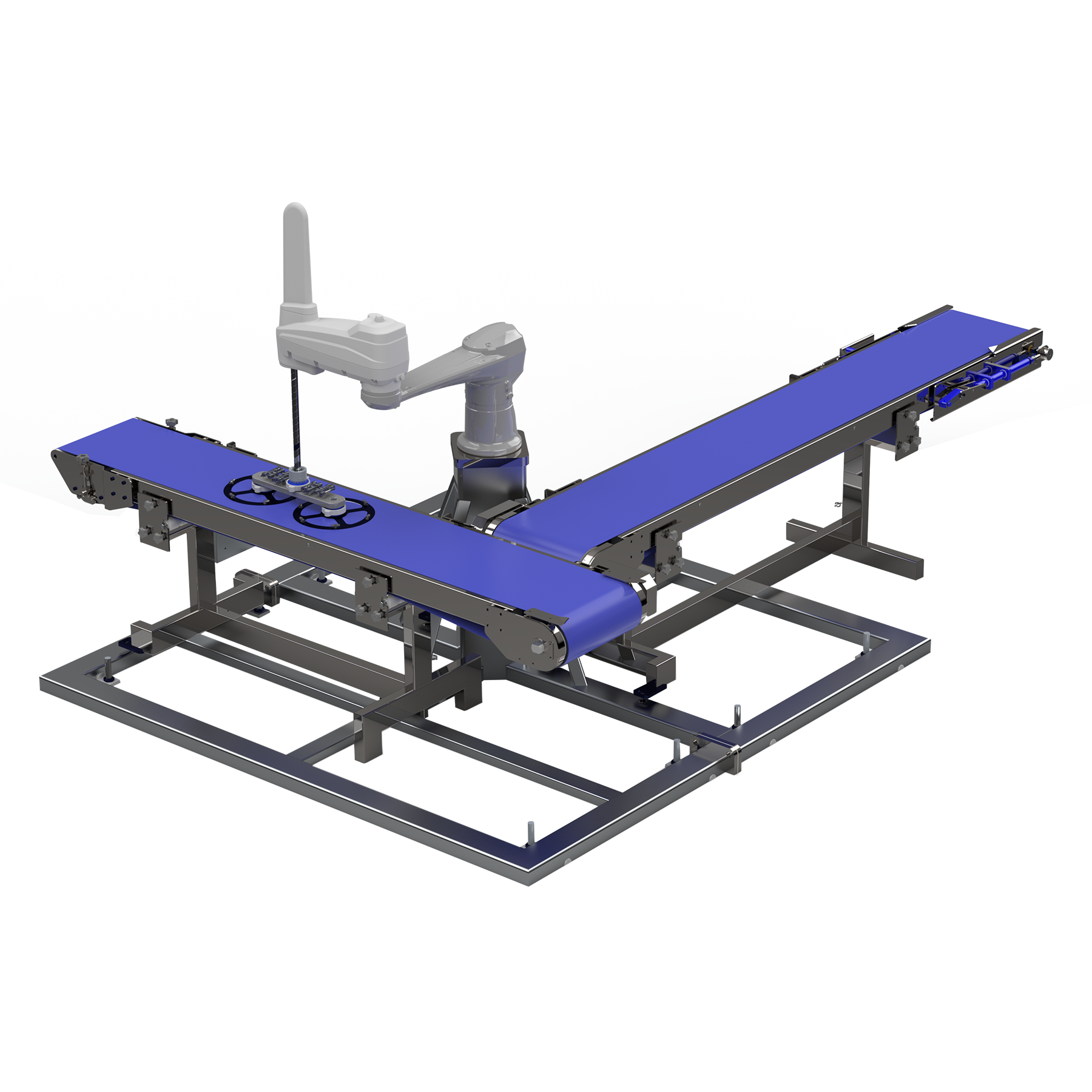

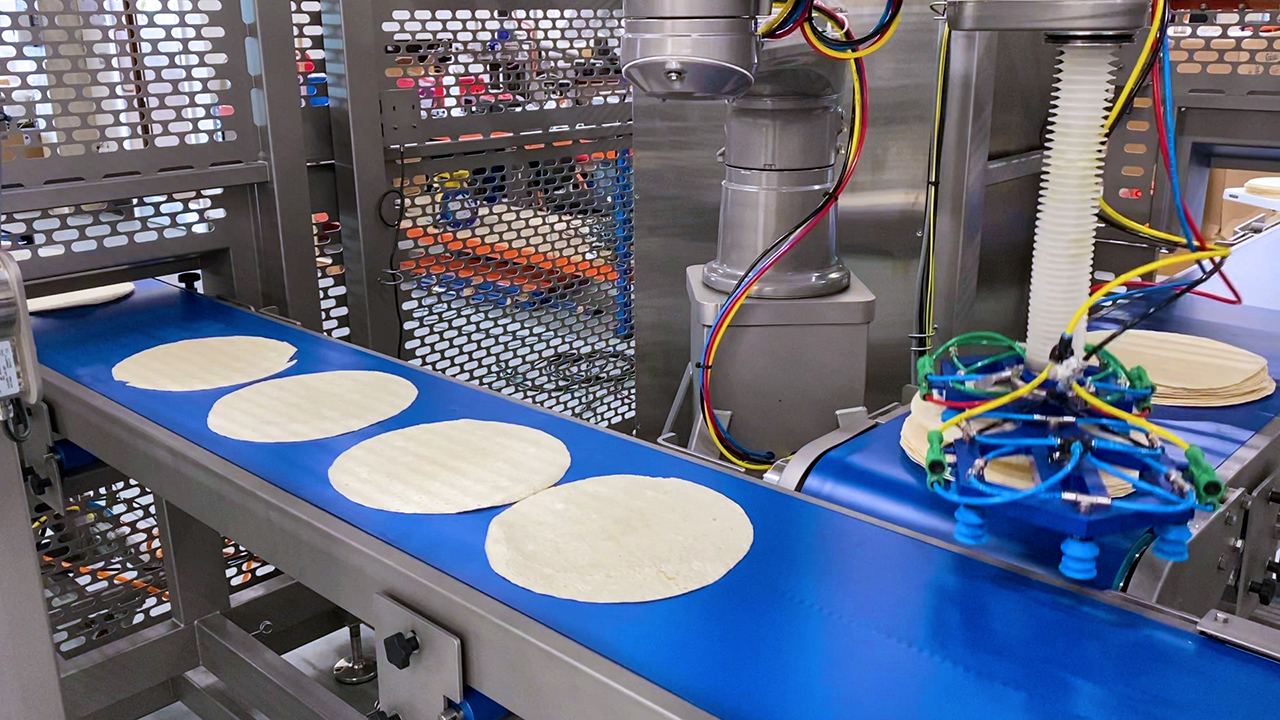

Tortilla Denesting

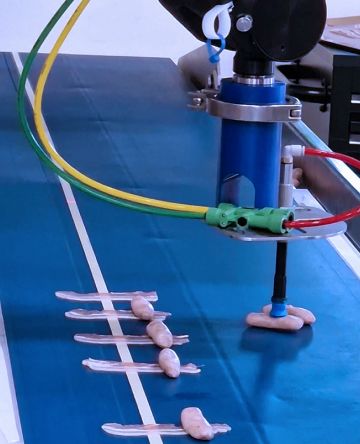

Sausage Pick & Place

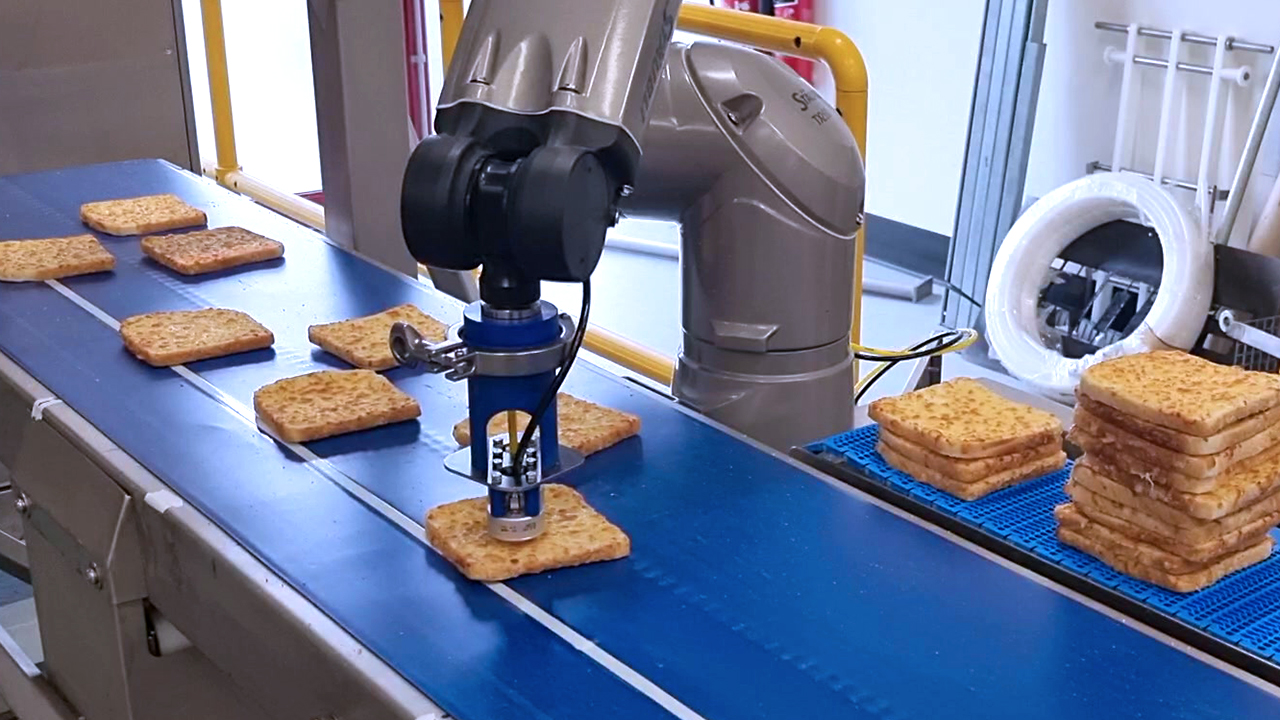

Toastie Stacking

Don’t see your application?

Contact us to configure your robotic solution.

Robotic Solutions Specialized for food processing

Our robotic solutions have the flexibility to handle a variety of high-care actions and applications. Customize your operation with single and twin lanes, various end-of-arm tooling options for multiple actions, and optional integration with Grote equipment. All components are food grade with sanitary design and rated for quick and thorough washdowns.

  • Perform up to 100 actions per minute per robot
  • Single and twin-lane solutions available
  • 4-axis, 6-axis, and Delta robots available
  • Optionally integrate and interface with Grote slicers and pizza topping and sandwich assembly equipment – automating high-care tasks immediately before and following our machines
  • Customize actions and applications
  • Single HMI touchscreen control for the entire system
  • Sanitary design – rated IP65 or higher

ROBOTIC Food Assembly APPLICATIONS

Grote’s robotic solutions are flexible to handle many actions for a wide range of prepared and ready-to-eat food products. Don’t see your application? Contact us to configure a robotic solution just for you.

Ingredient Handling and Pick & Place
Ingredient Assembly
Alignment
Pick & Place Into Packaging

FOOD PRODUCTS & INDUSTRIES

Baked Goods

Convenience Foods

Food To-Go

Frozen Meals

Prepared Salads & Meals

Processed Food

Ready Meals

Ready-to-Eat Foods

Snack Foods

ROBOTIC SANDWICH ASSEMBLY Components

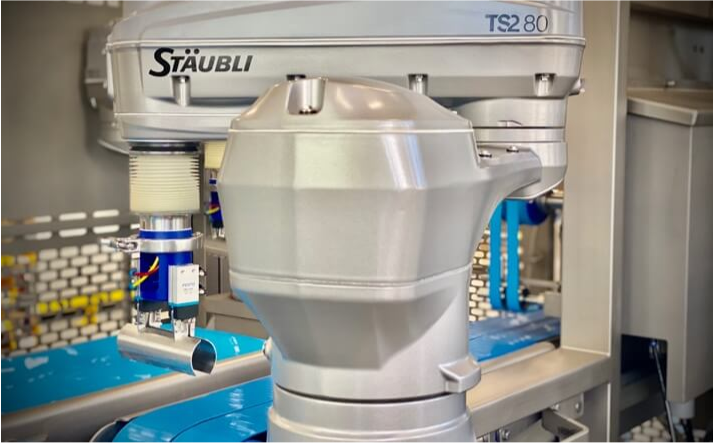

Hygienic Robots

We work with proven industrial robot manufacturers like Stäubli to integrate hygienic, high-performing robots into our processing lines.

Choose from 4 or 6-axis and Delta robots custom configured to your operation.

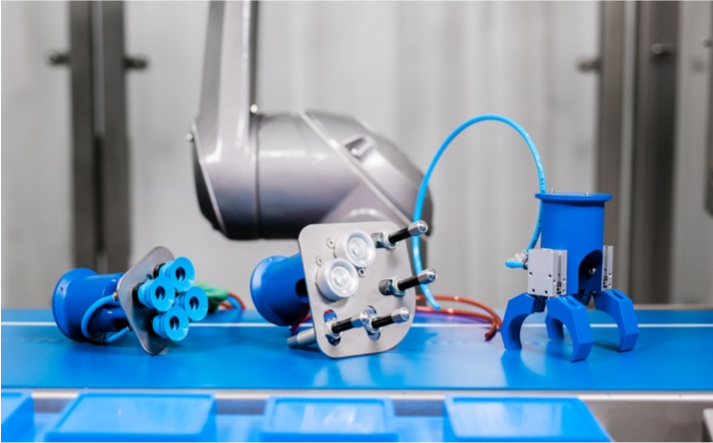

END EFFECTORS FOR FOOD PRODUCTION

We custom configure end-of-arm tooling (EOAT) for each robotic application – ensuring accurate and consistent performance. End effectors can be easily removed for sanitation and changed to accommodate multiple SKUs.

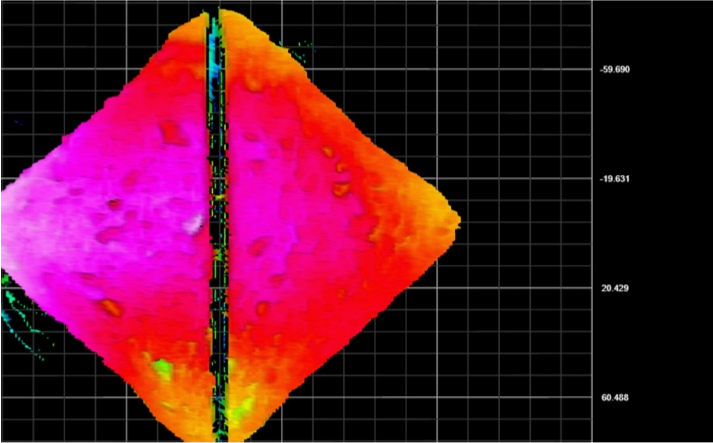

3D Vision System

3D vision allows the robot to see the entire form and shape of targets, significantly improving accuracy for singular, grouped, and irregular products.

Specs & Features
  • Standard rate up to 60 (4 and 6-axis) and 100 (Delta) actions/minute per robot
  • Single or twin lines available
  • 4-axis, 6-axis, and Delta robots available
  • Systems include hygienic robot arm, end effector, 3D vision system, and guarding
  • Available as a standalone solution or integrated with Grote equipment
  • Customized for your application and footprint, and can be integrated into existing lines
  • Sanitary design, all components rated IP65 or higher
Service & Maintenance

Our expert customer and field service teams work with you to find the solutions you need quickly and efficiently. View all services here.

  • Reach a real-life person on our Customer Service team to answer your questions or take a blade or part order.
  • Training programs get your operation up and running fast, and give your operators the know-how to keep it running
  • Our field service offers a variety of options that meet your needs, including phone and virtual support, scheduled and emergency field service available 24/7
  • Bi-annual flat-rate service plans allow you to plan your scheduled service costs in advance and provide the flexibility of scheduling as many or as little appointments as you need

TALK WITH OUR EXPERTS

Planning a food processing project? We’re here to help you define specs, find equipment and automation options, test products, and support existing lines.
